Standards
• API 610 (VS6), latest edition
• ASME Sections VIII and IX
• German Pressure Vessel Association (AD)
• British Standard BS 5500
• Compliance with Pressure Equipment Directive 97/23/EC
Operating Parameters
• Flows to 3000 m3/h (13 000 gpm)
• Heads to 2000 m (6500 ft)
• Pressures to 200 bar (3000 psi)
• Temperatures from -200°C (-325°F) to -45°C (-50°F)
• Coffer dam system
• Radial or mixed flow hydraulics
• Low suction velocity can design
• Optional axial thrust tilting pad bearing configuration
• Stiff shaft design
• API 682 compliant mechanical seal chamber
• Flanged spacer type coupling
• Screen-type, non-sparking coupling guard
• Inside drain line
• Casing and impeller wear rings
• Reinforced motor stand
• Optional inducer

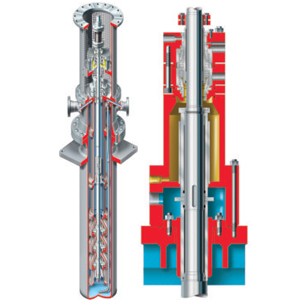

• WUC (VS6) double casing, multistage
flowserve pump
